Pacbrake Single Channel Wireless Controls (SD Compressor) without Remote

Product Name:Pacbrake Single Channel Wireless Air Spring Controls (2nd Generation) w/SD Compressor
Manufacturer: Pacbrake
Manufacturer Part #: HP20472
Thoroughbred Diesel Part #: PACHP20472
Fitment Notes: Universal

Overview

A breakthrough in air suspension control!

Welcome to the Second Generation of Pacbrake Wireless.

Now with 3x the signal strength for quick and reliable connection, even in the back country!

Product Description

Operate your air springs from the comfort of your cab with wireless air spring controls from Pacbrake!

Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools - no lines or wires to the cab and no drilling required!

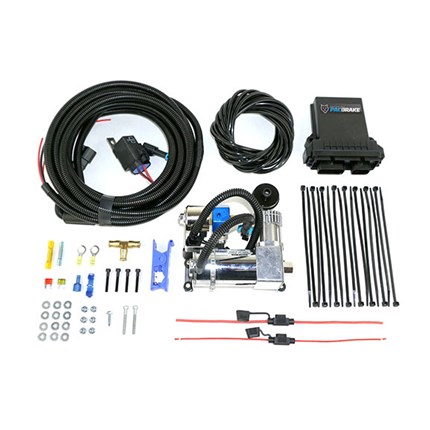

The kit comes with everything required for install:

• Air compressor, controller, solenoid block, pressure sensors and harnesses
• Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
• Air lines, pressure connectors and mounting hardware

HP20472 Wireless Controls come with 2 year warranty.*

*Refer warranty terms and conditions for additional details.

Product Specifications:

• MAX WORKING PRESSURE / DUTY CYCLE
• 827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
• MAX CONTINUOUS RUN TIME
• 5 Minutes ON / 55 Minutes OFF
• RATED FLOW
• 29 L/min [1.02CFM] @ 0kPa [0 psi]
• INDEPENDENT / SIMULTANEOUS FILL
• Simultaneous
• INGRESS PROTECTION
• IP55 Compressor, IP67 Electric Connectors
• WEIGHT
• 1.09 kg [2.41 lbs]
• AMBIENT OPERATING TEMPERATURE RANGE
• -40ºC to +70ºC [-40ºF to +158ºF]
• NOMINAL SUPPLY VOLTAGE 12 VDC MAX CURRENT DRAW
• 11 Amps

Application Notes:

• This kit comes with a waterproof and debris resistant HP90 12V DC Air Compressor.
• The kit is on demand and intended to use without an air tank.

Pacbrake Wireless Air Spring Controls Features:

• Single Path Control – left and right air springs are inflated/deflated equally.
• Waterproof and debris resistant compressor and controller!
• 3x Signal Strength – gone are any frustrations associated with connecting phone and controller.
• Military grade solenoids – designed to withstand extreme cold, heat, moisture or salt spray.

• Smarter App – reads real time pressure feedback within each air spring and has 3 built-in memory presets. For use with iOS™ and Android™ devices.
• Ultra Easy Connections– Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduces installation time to under an hour!

• Works in the Backcountry - strong bluetooth connection; does not require cellular service to operate.
