S&B 55 Gallon Replacement Fuel Tank - 06-24 Cummins Mega Cab Short Bed

Product Name: S&B 55 Gallon Replacement Fuel Tank - 2006-2024 Dodge Cummins Mega Cab Short Bed
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1009
Thoroughbred Diesel Part #: SBT10-1009
Fitment Notes: 2006-2024 Dodge Cummins Mega Cab Short Bed

Important Notes:

• The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
• OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons.
• The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.67(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure. Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

PLUG AND PLAY INSTALLATION.

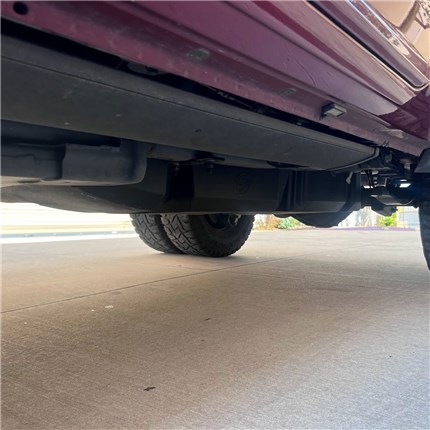

The S&B Tank comes with all the components to remove your 31-gallon tank and replace it with our 55-gallon tank. The tank mounts in the stock location using the included straps. The tank occupies the space forward of the OEM fuel tank.

FUEL GAUGE FUNCTIONALITY.

Even with more fuel on board, your fuel gauge will remain working. The gauge will stay on full for the first 7-10 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (55 gallons), you will have an 1100 range but your distance to empty will show 620 (20 MPG * 31 gallons).

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of 1/4� thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

S&B Fuel Tank Features:

• 55 Gallon Capacity
• Anti-Wave Internal Baffles
• Reuses Factory Sending Unit
• Integrated Transfer Pump Fitting
• Patent-Pending Integrated Fuel Sump
• Double Coated Stainless Steel Hardware
• High-Density Crosslink Polyethylene Construction
• Direct Bolt-In Installation - No Modifications Needed
• For more information on S&B Tanks call us at 1-859-737-4966
