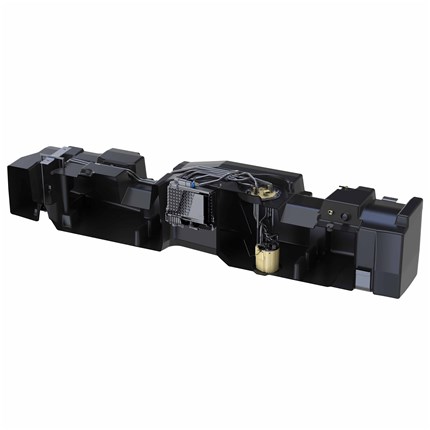

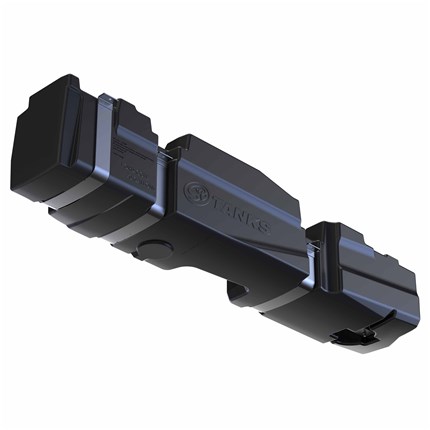

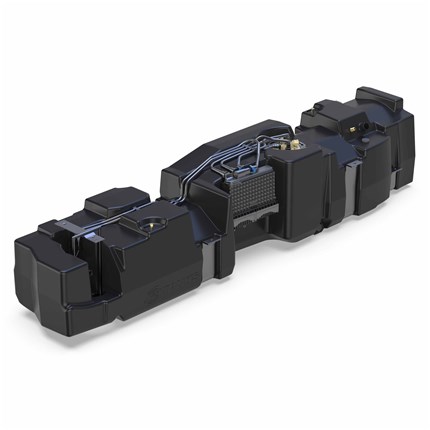

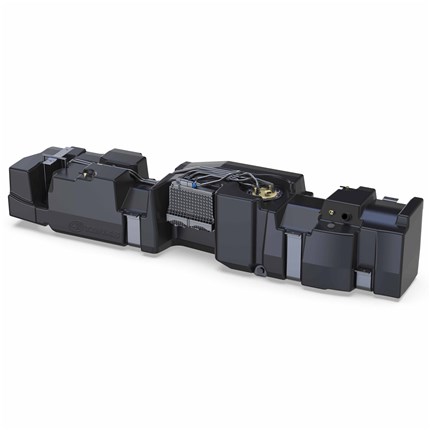

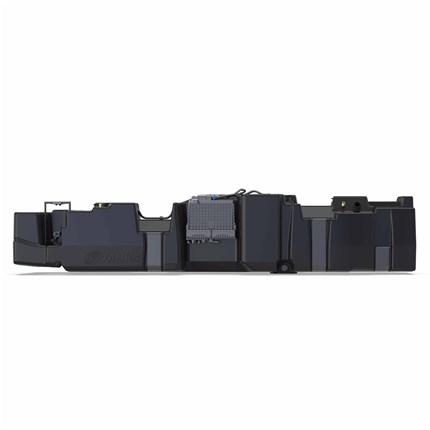

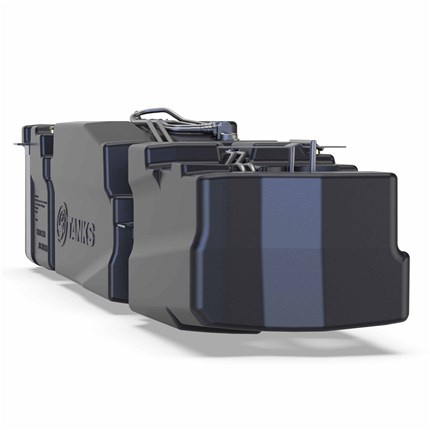

S&B Tanks 68 Gallon Replacement Tank for 17-24 Ford Powerstroke Crew Cab Long Bed

Thoroughbred Sku #: SBT10-1008
Manufacturer Sku #: 10-1008

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,349.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: S&B Tanks 68 Gallon Replacement Tank
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1008
Thoroughbred Diesel Part #: SBT10-1008
Fitment Notes: 2017-2024 Ford Powerstroke Crew Cab Long Bed

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

More Fuel. Less Hassle.

Holds 3 more gallons than competitor tanks!

S&B's 68-gallon fuel tank directly replaces the OEM 48-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 3 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!

Easy Distance to Empty Calibration.

S&B teamed up with EZ Lynk to make adjusting your Distance to Empty (DTE) FREE and EASY.

USE YOUR OEM Skid Plate.

If you don't have a skidplate on your truck already, no problem! But if you do, we designed the S&B Tank to allow you to reuse the factory skidplate.

Using a FASS / Airdog
Lift Pump?

Add S&B's Sending Unit!

S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps(FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

S&B Tanks Features:

  • 68 Gallon Capacity
  • Anti-wave Internal Baffles
  • Reuses Factory Sending Unit
  • Integrated Transfer Pump Fitting
  • Patent-Pending Integrated Fuel Sump
  • Double Coated Stainless Steel Hardware
  • High-Density Crosslink Polyethylene Construction
  • Direct Bolt-In Installation - No Modifications Needed
  • For more information on S&B Tanks call us at 1-859-737-4966.



Tank Type Midship
S&B Capacity (Approximate) 68 gallons
Weight (Dry) 56lbs
Ground Clearance Compare to OE Tank 2.5" lower
Sump No
Drain Yes
Sending Unit OE
Straps Included Yes
Compatible with OE Skid Plate Yes
Compatible with Gooseneck and 5th Wheel Yes
Transfer Pump Ready Yes
Embedded Fitting Thread Size 1/2" NPT

Reviews

  • I have a 2022 Ford F350 extended cab long bed . Do you make a tank for it? The one I see listed looks like it fits only the crew cab long bed.

    Jerry Nave | 10/7/2023

    Not at this time.  CC LB only.

  • Can/will the factory tank skid plate remount on this tank? (S&B Tanks 70 Gallon Replacement Tank for 2017-20 Ford Powerstroke Crew Cab Long Bed)

    Peter Meacham | 6/9/2020

    Yes

  • Do you make a tank the will work for an 08 f350 with the v10?

    Wes Monroe | 8/8/2023

    No diesel tanks only at this time.

  • Does this replacement tank have Accommodations for DEF tank?

    Chad | 12/12/2022

    No modifications needed for the DEF tank.

  • I have a 2004 Dodge Ram 2500 S.A.D. do you make a Right Hand Auxiliary tank to increase diesel volume i have a camper shell and no way for in bed tank to be able to refuel.

  • That did not answer my question. Didn't say if it will or won't. Same bed same stock tank as the crew cab as does the mega cab short bed. So will this tank work or have other options that are not a titan tank. I need this tank Bc the sump on it and putting a lift pump on my truck.

    Andrew | 3/6/2020

    No it wont fit. The 10-1005 is specific to the 2500 Dodge Crew Cab Shortbed trucks, S&B Tanks will be releasing late next month a tank for all the Mega Cab applications which is still in R&D at this time.

  • I have a 2014 ram 2500 mega cab. Will the 52 gallon Tanaka still work on my truck since it is a short bed?

    Andrew | 3/5/2020

    2013-20 Ram Cummins 6.7L, Crew Cab Short Bed (6’ 4”).

  • My 2019 Dodge Ram 3500 short bed (not a dually) only has a 32 gal. tank. I do not want an in bed tank. Do you make a larger capacity stock tank replacement?

    Gary Weed | 9/26/2019

    52 Gallon Replacement Tank For 2013-19 Ram Cummins 6.7L, Crew Cab Short Bed
