South Bend Street Dual Disc Clutch 650 hp, 1300 ft. lbs. torque - 05.5-18 Dodge G56 - SDD3250-GK

Thoroughbred Sku #: SBCSDD3250-GK
Manufacturer Sku #: SDD3250-GK

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,726.66

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: South Bend Clutch
Manufacturer: South Bend Clutch
Manufacturer Part #: SDD3250-GK
Thoroughbred Diesel Part #: SBCSDD3250-GK
Fitment Notes: South Bend Street Dual Disc Clutch/Input Shaft 650 hp, 1300 ft. lbs. torque - 05.5-18 Dodge G56
Transmission: G56

Need Help? Check Out Our South Bend Clutch FAQ/Trouble Shooting Section.

South Bend Clutch Performance Kit Descriptions

Dual Disc for 650 hp, 1300 ft. lbs. torque - Includes the Hyd-X-.750

SDD3250-GK ---- Half Organic Half Ceramic Non-Sfi Approved Street Dual Disc 650 Hp 1300 ft-lbs Trq Rated For Towing 30K plus. Hydraulics included. NOT recommended for stock applications. !!!! NOT FOR COMPETITION USE !!!!!!
Stage: 3
Use: STREET DUAL
Ft-Lbs: 650 hp 1300 tq

SDD3250-GK Features:
  • 650hp, 1300 Ft. Lbs. Torque
  • Multi Friction disc with 12 Organic Buttons on one side and 12 Ceramic Buttons on the other side
  • Stabilized center plate (floater plate) with hardened dowl pins and snubs to reduce rattle when disengaged
  • Neoprene dampeners for quiet operation
  • Dampened, Free-Travel clutch disc design reduces gear roll over
  • 13" diaphragm style 3250 lb. Pressure Plate offers maximum holding power with easy pedal effort
  • Not SFI Approved (Not for competition)

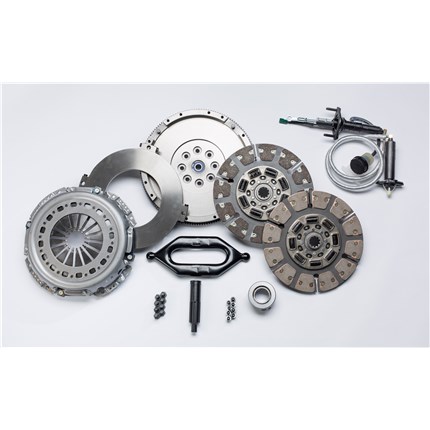

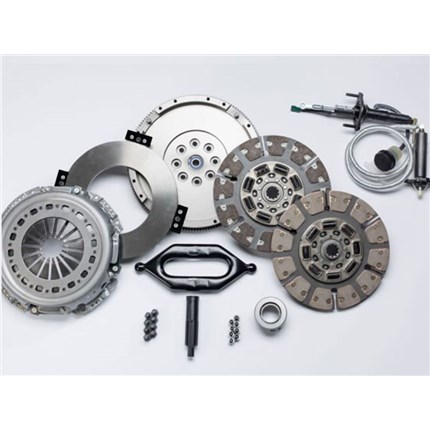

SDD3250-GK Includes:
  • Flywheel – Solid Mass Ductile Flywheel
  • Hydx.750 Hydraulic Assembly (Required)
  • Crank Bolts
  • Kevlar Pilot Bushing is a Heavy Duty Double-Sealed Roller Bearing
  • Clutch Fork
  • OEM Thow-Out Bearing
  • Alignment Tool

Reviews

  • Any warranty on new ones? Mine just showed symptoms of a bad clutch and supposedly just had a southbend put in 4 months ago

    Joshua E Brotherton | 6/7/2021

    1yr, 12000 mile.

  • Does this kit come with the 1-3/8" Input Shaft upgrade, if not, does it need one?

    Steven | 5/7/2019

    This kit does not come with an input shaft upgrade. The G56 stock input shaft is capable of handling the dual disc and does not require an upgrade.

  • Is this a quiet clutch?

    Ethan Tipton | 4/30/2019

    The dual disk clutches have some noise to them because of the separator plate.  Tons of engineering have gone into these clutches today to quiet them such as the Kevlar buttons on the separator plate and sprung hub clutch disks.  The noise from the clutch now is very tolerable.

  • I have a 2016 cab &chassie I’ve had it deleted and the throw out in the valair is smoked I want to buy the south bend . This truck is allways hooked up and pulls anywhere from 10 to 20k loads. Which clutch do you recommend and does it come as a kit including flywheel hydraulic etc?

    Rob | 8/27/2023

    SBCSDD3250-GK-ORG, this kit will come with everything needed.

  • So its time to replace my clutch (2010 Dodge 2500 6.7 cummins/G56). I upgraded from the stock clutch already with a Luk DD clutch (NAPA) so the hydraulics have been upgraded from stock. My question is should I upgrade the hydraulics again with the new South Bend setup?

    Chris | 3/30/2022

    It would be recommended, but not required.

  • will this kit fit on a 2018 Ram 2500?

    ANDRES CARDENAS | 11/2/2021

    Yes.

  • can i purchase a pressure plate separately from this kit? i don't need a clutch at this time. my throw out bearing went out and damaged the fingers on the pressure plate. i will need a new pressure plate, throw out bearing, clutch fork, input shaft sleeve.. let me know. Thanks.

    jeff collins | 3/6/2020

    Please contact Southbend Clutch 800-988-4345.

  • Do i need the pump that comes with the new clutch or can i use my old pump from the truck?

    Alex | 2/20/2020

    If you mean the stock hydraulics, South Bend recommends going with the upgrade hydraulics.

  • Why Might My Clutch Slip If I Try To Accelerate In Overdrive?

    Eric Schumann | 5/16/2019

    Too much torque at too low an RPM. I go back to the automatic. If you were driving down the road in automatic overdrive, with the cruise control on, and approached a hill, the system (in order to keep a constant speed) would need to accelerate. The transmission would automatically downshift in order to do so. By keeping the RPM up while accelerating, it is preserving its life. There is a misconception about fuel consumption. People believe that the lower the RPM, the better the mileage, when actually, the opposite is true. All that black smoke you get when you step on it in overdrive is unburned (and therefore wasted) fuel. Keep the RPM up by downshifting into the right gear, and your truck will run much better.

  • Is It Wrong To Tow In Overdrive?

    Eric Schumann | 5/16/2019

    This is a very good question, because most people do just that. The trouble is, it is too hard, with all the variations in terrain, to keep a constant speed. Therefore, you end up accelerating too much in that high gear. Many trucks, with automatic transmissions, set up for towing, will include a button for "tow mode" which locks the transmission out of overdrive. The main reason for that is, the transmission would be constantly downshifting. The best answer is to say; watch your RPM, if it starts to drop too low, rather than stepping down on it in 6th, drop to 5th ...and maybe stay there.

  • Can I Sled-Pull With My Street Dual Disc Clutch?

    Eric Schumann | 5/16/2019

    The simple answer to that question is...no. The SDD was not designed for that purpose. That being said; I know people do it anyway. Some get away with it, and drive home (with both their feet), and some do not. The risk is that the amount of heat produced when you launch with a sled behind you, can fracture (and fragment) the cast iron plates in the clutch. Competition clutches are made out of steel for that very reason. Safety is a factor that should be considered above all.
