Suncoast 10L1000 Category 3 Transmission with SunCoast Pro-Loc Valve Body Combo & Deep Pan (WITHOUT CONVERTER) 2020-2024 GM 2500/3500 Trucks

Thoroughbred Sku #: SUNC-SC-10L1000-CAT3-4WD-LC-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$9,995.00

+ $400.00 Shipping

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:Suncoast 10L1000 Category 3 Transmission with SunCoast Pro-Loc Valve Body Combo & Deep Pan 2020-2024 GM 2500/3500 Trucks
Manufacturer: Suncoast
Manufacturer Part #: SC-10L1000-CAT3-4WD-LC
Thoroughbred Diesel Part #: SUNC-SC-10L1000-CAT3-4WD-LC
Fitment Notes: 2020-2024 GM 2500/3500 Duramax

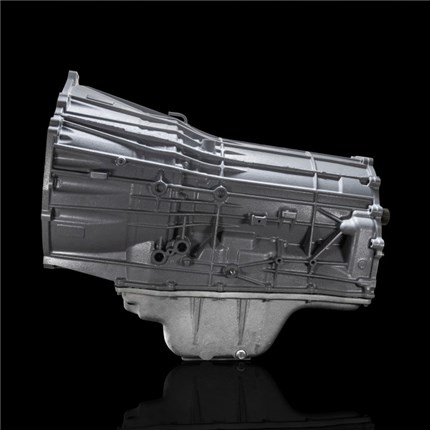

The 10L1000 Category 3 Transmission

Enter the awe-inspiring Allison 10L1000, a marvel of engineering born from a groundbreaking collaboration between Allison and Ford. This transmission redefines the very essence of its predecessor, the Allison 1000, boasting a design so revolutionary that it transcends its lineage. It's not just a transmission; it's a symphony of power and precision.

Introducing the Suncoast 10L1000 category 2 transmission, engineered to be a reliable upgrade over factory options, especially for heavy-duty work environments. We've focused on addressing common issues encountered in demanding scenarios to ensure durability and performance when it matters most.

With the Suncoast 10L1000 upgraded transmission assembly, you can expect improvements in areas like durability, torque handling, and overall reliability. Whether you're hauling heavy loads, towing, or navigating rough terrain, this transmission is built to handle the rigors of tough jobs without skipping a beat.

Our design enhancements mean fewer breakdowns and less downtime, translating to increased productivity and lower maintenance costs for your vehicle. Plus, the Suncoast 10L1000 is designed for easy installation, minimizing hassle and maximizing uptime.

Upgrade to the Suncoast 10L1000 transmission and experience peace of mind knowing your vehicle is equipped to handle the toughest challenges your work environment throws its way. It's a practical solution that delivers real-world benefits for your business or personal use.

The Rebuilding Process

Experience the Suncoast 10L1000 transmission rebuild process—a blend of precision and practicality that elevates reliability to new heights. We start by disassembling the transmission, removing all worn "soft parts" to make room for a fresh start.

Our specialized hot wash tank, heated to 198 degrees, becomes the gateway to cleanliness as casing and housings undergo thorough cleansing. This step ensures a pristine foundation for the transmission's revival.

As the components emerge, they face scrutiny from our skilled technicians. Hard parts undergo meticulous inspection, with any signs of wear or damage identified and addressed. Only those fit for duty proceed to the next phase.

The casing receives special attention, with every nook and cranny inspected for flaws or fractures. This critical step ensures structural integrity, safeguarding against future issues.

What emerges from this process is not just a transmission, but a testament to reliability and performance. With the Suncoast 10L1000, you're not just getting a product—you're investing in peace of mind and dependability for the road ahead.

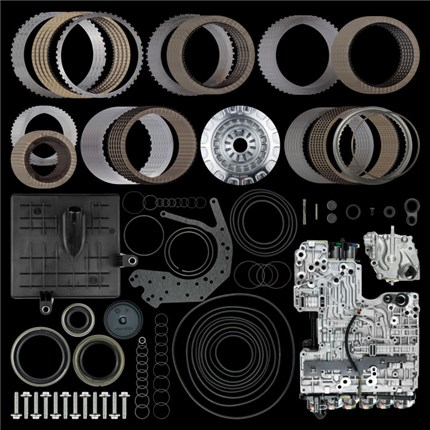

Transmission Includes:

  • Raybestos Powertrain GPZ Frictions
  • Raybestos Powertrain Steels
  • 10L1000 Transmission Overhaul Kit

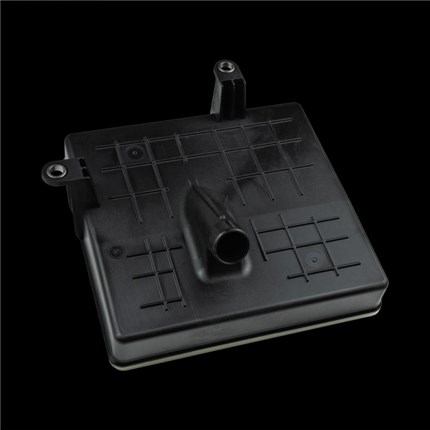

  • Pan Filter
  • 10L1000 Deep Cast Aluminum Pan (4 quarts over stock)
  • New OEM CDF drum assembly
  • New OEM F Clutch Cylinder Trashcan
  • New SunCoast 10L1000 Valve Body & Pump Assembly

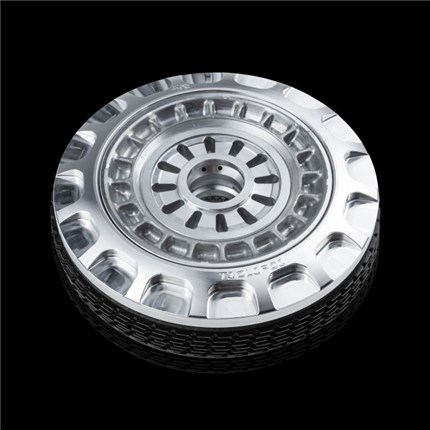

The Expanded Capacity E Drum

  • 29% more clutch capacity than OEM
  • Billet apply piston diameter enlarged to avoid “clutch cone” by contacting more surface area of top steel
  • Billet 6061 apply piston ensures minimal deflection
  • Patent-pending design made in-house in Florida
  • 15% more capacity than any other aftermarket drum
  • Steels engage on 4140 steel dowels, instead of the problematic cast aluminum drum assembly

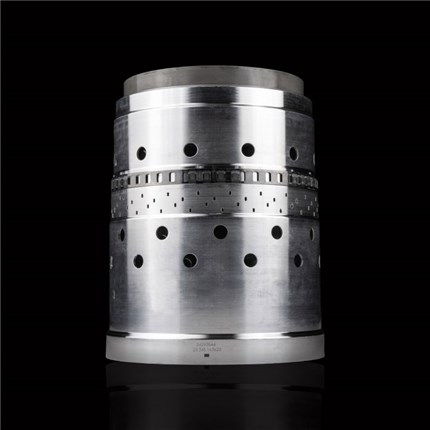

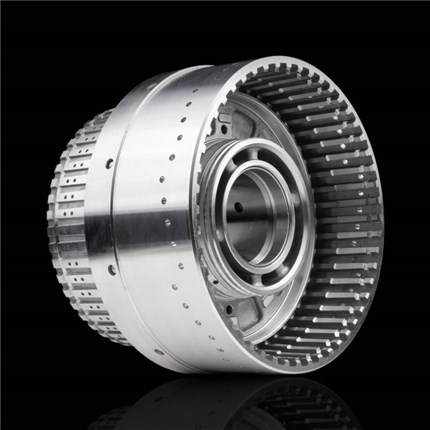

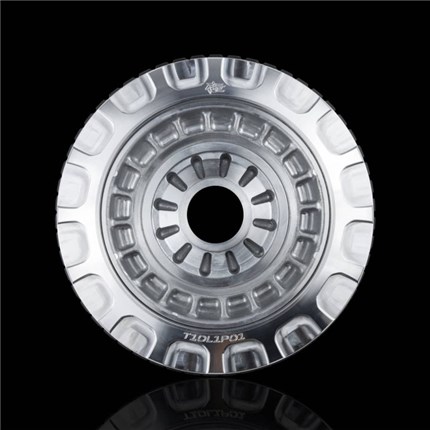

SunCoast's Category 2 transmission also comes with our 10L1000 High capacity "E" clutch drum with billet apply piston. This new High Capacity 10L1000 clutch drum arrives fully assembled for effortless installation. Our high-capacity 10L1000 "E" clutch drum addresses all of the facets affecting the durability of these clutches in highly demanding driving situations.

To improve clutch life we first started by simply increasing the clutch count. This new 10L1000 clutch drum boasts an astounding 29% increase in clutch capacity compared to the factory drum, surpassing any other aftermarket option on the market today by an additional 15%.

Another key point we address here is the deflection in the E-clutch. This is especially exacerbated when operating under higher line pressures, often experienced during heavy-duty or higher-load situations.

The new SunCoast 10L1000 “patent-pending” E-piston is engineered to eliminate any possibility of apply-deflection or coning. By using superior materials and increasing the apply piston diameter, we have significantly expanded the contact surface area. Crafted from billet T6061 aluminum bar stock and meticulously CNC machined in-house to exact tolerances, this new “E” Drum Apply Piston for the 10L1000 embodies SunCoast's excellence in design.

Moreover, we've tackled the issue of rapid drum degradation caused by steel tooth chatter/engagement. SunCoast's solution involves the designing of specialty 4140 steel dowels for the steels to engage with, replacing the highly malleable factory-cast aluminum. This design allows us to ensure reliability while keeping reciprocating mass at a minimum.

The friction material was also addressed as we have changed from the factory friction material which is engineered and designed to provide maximum "NVH" for comfort. This new 10L1000 drum is equipped with Raybestos GPZ clutches.

The "F" Clutch

This clutch is also prone to premature wear as we have seen with other Lepelletier Ravigneaux Gear sets...oncoming clutches in higher gears seems to take the blunt of the beating. With the new 10L1000 transmission, the "F" clutch is no exception.

The "F" clutch is engaged in R,4,5,6,7,8 and 9th. The quickest path to early or premature degradation to this clutch pack is wide open throttle or heavy-load-indexed 3rd to 4th shifts. This is especially prominent in applications where torque management has been deleted.

Suncoast has corrected this issue by adding 25% more capacity to this clutch pack by taking it from 4 clutches to 5 in this particular clutch pack.

The "D" Clutch

It is not uncommon to see rapid degradation along with premature failure with this clutch pack in even stock form.

The "D" clutch is engaged in P, R,1,2,3,4,6,7,8,10. Where the problem lies is in its oncoming clutch responsibilities when engaged in 6th gear as the oncoming clutch. With this responsibility in higher horsepower or more demanding driving situations it becomes very obvious uptown teardown this clutch has seen its share of abuse.

Suncoast provides GPZ friction material, providing higher friction coefficients, increasing torque capacity well beyond the factory limits. This along with our higher apply pressure with our high volume 10R140 transmission pump creates the perfect environment for more reliable shits. The new Suncoast 10L1000 transmission clutch module requires absolutely no machining or modifications to your current unit...we supply everything needed.

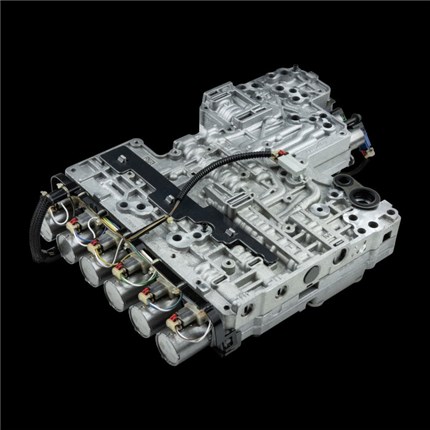

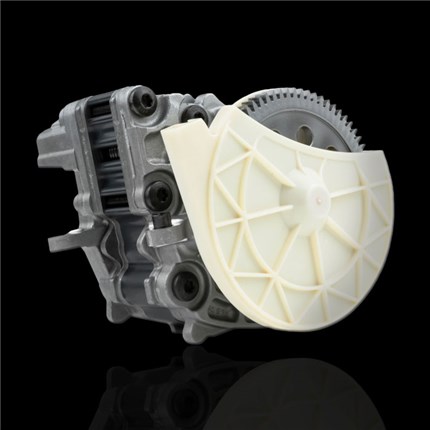

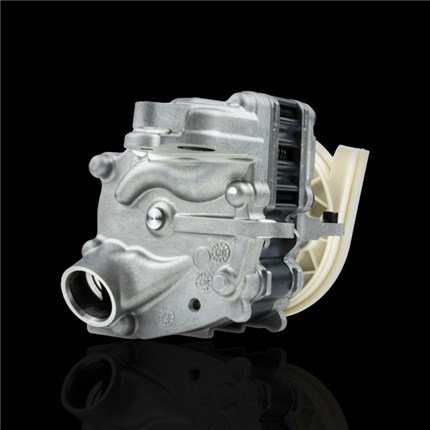

The Pro Loc Valve Body and Pump

With the SunCoast 10L1000 Pro Loc valve body, we are addressing several key issues we have seen in regard to the 10L1000 transmissions. This is not an approach that is simply bumping in more line pressure in hopes of ascertaining more clamping force; it’s a multi-faceted approach addressing several key issues when exposing these units to more demanding driving environments. These range from heavy towing and hauling to street racing and drag racing.

The factory 10L1000 transmission lock-up circuit is an impressive one, in that it can make converter lockup seem somewhat uneventful. The refinement in its engagement is definitely next-level to what we have seen in the past. As nice as this feels in reference to the NVH (Noise Vibration Harshness), when we start introducing situations where the load demands are testing the limits or outside what the vehicle was initially designed for, it can become a huge problem.

In our SunCoast 10L1000 Pro Loc Valve Body we are specifically looking to decrease the time from initial lock-up apply to zero turbine slip. In doing this, we are changing the lockup circuit by replacing the torque converter clutch (TCC) valve in order to increase lockup holding apply fluid pressure. The lockup oil transition time is also improved by modifying critical oiling circuits for the fluid to reach the TCC clutch, resulting in quicker apply time, and therefore, reducing TCC clutch degradation. By reducing degradation per apply cycle, we are allowing for improved reliability and performance.

(NOTE: For maximum results in power levels exceeding 800HP, it is highly recommended that the TCC apply offset be changed in the factory file calibration)

The next facet we address is the lube circuit. The lube circuit on the 10L1000 transmission is responsible for supplying oil to the planets, clutches, bushings, etc. From the factory, the lube circuit oil is dispersed throughout the transmission as low as 6 PSI. Under normal load demands, this is perfectly acceptable. In more stressful and demanding situations, an increase in lubrication to clutches, steels, planets is ideal for removing heat and dealing with the increased demands.

In our 10R140 Valve Body we are specifically addressing this circuit from 6 PSI to a whopping 20 PSI. This is a 250% improvement from the factory calibration, resulting in reduced frictional heat generated. This reduction in heat helps lessen pre-mature failure that can become increasingly evident in high horsepower applications.

Another modification to our SunCoast Pro Loc 10L1000 Valve Body involves the regulator valve (latch valve) circuit. This oil circuit is responsible for fully engaging the clutches, allowing for full clutch line pressure. In factory form, the regulator valve we are specifically targeting is responsible for A, B, C, and F clutch packs. Of course, our primary clutch pack concern is the 'F" clutch, which tends to be the first and most prominent clutch pack failure with the 10L1000 in higher horsepower or more demanding environments.

In a factory 10L1000 valve body calibration, the regulator valve (latch valve) becomes fully engaged, allowing full fluid flow for engagement at 120 psi. When this occurs, the oncoming clutch pack has maximal clamping force. When the clamping force is engaged to max capacity, we ascertain the greatest static and dynamic holding capacity. In stock form or even mildly modified vehicles, this is perfectly suitable; however, when we expose the vehicle to a more demanding environment this can be a weak link.

With our SunCoast 10L1000 Valve Body we are decreasing the required pressure to fully engage the regulator to only 80psi. This is a 33% decrease in pressure needed to maximally engage the clutch regulator valve (latch valve) resulting in a quicker shift apply when engaging clutches A, B, C and F. This quicker engagement not only shortens shift times, but it also decreases the heat resonating in the clutch pack, preventing premature degradation and extending clutch life. To improve this shift calibration even more SunCoast is evacuating non-critical oil to increase apply rate.

The factory overall line pressure is modified on this new SunCoast pump/valve body combo. SunCoast is increasing overall main line pressure as much as 60psi. This additional line pressure not only increases maximal clamping force of the individual clutch packs but increases overall pump volume production. To reduce the potential for runaway pressure and the over-compression of clutch fibers, the SunCoast 10L1000 Valve Body does have a built-in bypass, dumping excessive pressure above 420psi.

Features and Benefits

  • Increased Line Pressure, as much as 60psi
  • Increased clamping force on all clutch packs
  • 250% Increase in Cooler Charge Pressure
  • Increased Lock-up Apply Pressure
  • 33% Decrease in Maximal Pressure Actuation of Clutch Packs
  • Shortened Shift Times
  • Improved Clutch Wear

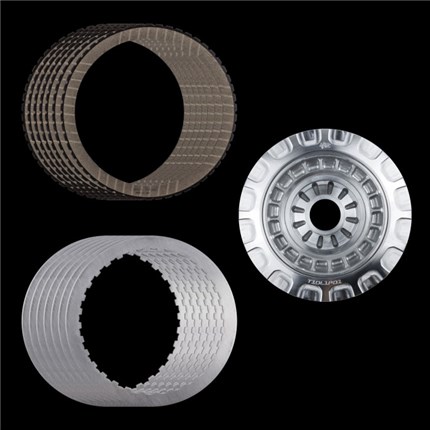

Raybestos Frictions & Steels

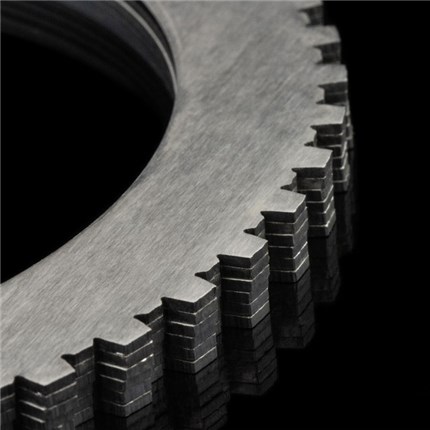

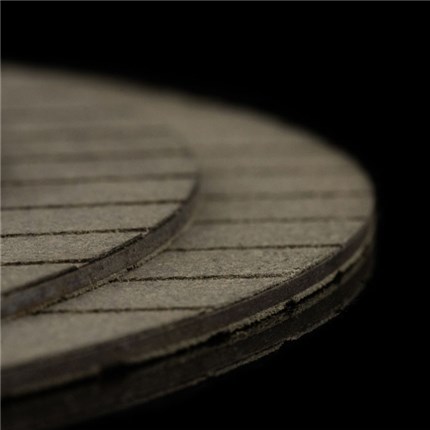

Raybestos Powertrain GPZ friction clutch plates greatly increase transmission performance and durability. This state-of-the-art friction material far exceeds OE material to withstand high stress, high temperatures, and repeated cycling. GPZ's outstanding performance benefits are perfect for heavy-duty vehicles and high-stress driving. Testing of GPZ revolutionary friction material shows that it outperforms OE materials by as much as 20%.

Raybestos Powertrain steel clutch plates are high-quality, application-engineered products at a price you can afford. Manufactured with attention to critical tolerances and quality control, our steel plates meet or exceed OE specifications and have a superior surface finish that supplies a greater apply area and friction clutch life. Raybestos steel plates give better shift performance and clutch durability, lowering noise and shudder, and extending the life of your transmission.

Features & Benefits

  • Better shift performance and clutch durability
  • Enhanced shift feel
  • Withstands high horsepower
  • Greater torque capacity
  • Maintains piston travel
  • Optimum performance
  • Higher heat resistance
  • Made In USA
  • OE thickness for maximum heat sink
  • Superior surface finish for greater apply area and friction clutch life
  • Meets or exceeds OE specifications for flatness and parallelism
  • Flawless fit without binding

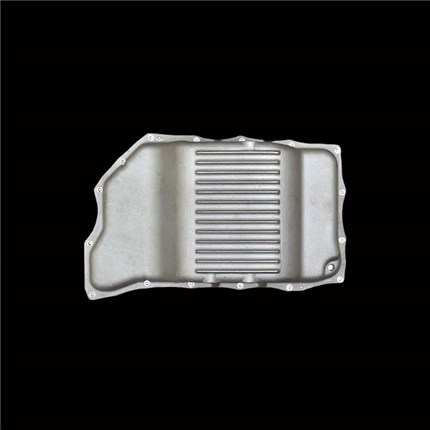

The Deep Pan

Number of Bolts: 16 bolts (18 holes, 16 bolt holes and 2 holes to locate gasket)

Volume: 4 quarts over stock

Dimensions: at deepest area, PML pan is 7 inches, stock pan is 4.3 inches

This new deep pan designed and manufactured this 10L1000 Allison transmission pan for 2020 and newer Duramax trucks. The design focuses on maintaining the general shape of the OEM pan while adding extra capacity and a finned bottom for heat dissipation.

Benefits of Deep Pan Design

  • Extra capacity
  • Finned to increase surface area for heat dissipation
  • Drain and magnetic drain plug
  • Thick walls and gasket flange
  • Heavy duty construction
  • Shape similar to OEM pan to replicate fluid flow and dynamics of OEM pan
  • Deep sump middle design avoids clearance issues with any cross frame members or exhaust packages

Suncoast Transmission Features:

  • Better shift performance and clutch durability
  • Enhanced shift feel
  • Withstands high horsepower
  • Greater torque capacity
  • Maintains piston travel
  • Optimum performance
  • Higher heat resistance
  • Made In USA
  • OE thickness for maximum heat sink
  • Superior surface finish for greater apply area and friction clutch life
  • Meets or exceeds OE specifications for flatness and parallelism
  • Flawless fit without binding
  • For more information on Suncoast call us at 1-859-737-4966.
