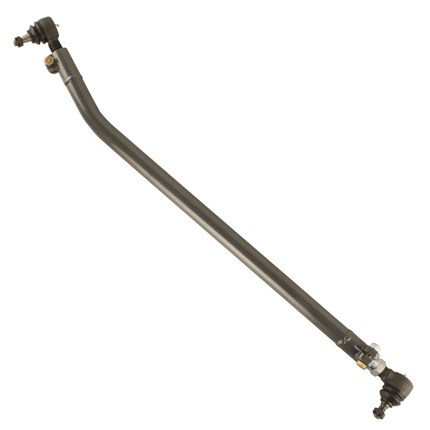

Synergy Heavy-Duty Drag Link - 2014-2024 Ram 2500/3500 4WD

Product Name: Synergy Heavy-Duty Drag Link | 2014-2024 Ram 2500/3500 4WD
Manufacturer: Synergy
Manufacturer Part #: 8701-01
Thoroughbred Diesel Part #: SYN8701-01
Fitment Notes: 2014-2024 Ram 2500/3500 4WD

The Synergy Ram Heavy Duty Drag Link has all new design with components specific to the new radius arm Ram Truck platform. It is a direct bolt-in replacement for the stock drag link for an immediate upgrade in steering feel, stiffness, and strength. The drag link is made from high quality DOM steel tubing for maximum strength. It features a single plane tie rod end on the pitman arm side which eliminates drag link flop. You will not find a better drag link on the market!

Min/Max Length:

Measured in a straight line from center of tie rod end to center of tie rod end

• Min collapsed length: 39.13"
• Max extended length: 41.50"

Includes:

• (1) 8701-01 Ram drag link
• (1) 4160-L Ram single place tie rod end
• (1) 4134-L Ram tie rod end
• (1) Adjuster sleeve
• (2) Pinch Bolts and hardware

Notes:

• Replacement Tie Rod Ends:
  • (1) 4134-L (Passenger)
  • (1) 4160-L (Driver)
• Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components (TRE's and Adjuster Sleeve)

Synergy Features:

• Improves strength and steering feel and eliminates any chance of bending
• Offers a more direct connection to the road compared to stock; no  more bent drag links and constantly having to align your vehicle
• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
• Eliminates unwanted drag link flop
• Drag Link length adjustable on the vehicle
• Compatible with stock wheels and tires
• Drag Link bolts right into the factory mounts with no additional wheel requirements
• No factory drag link components need to be reused
• Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 inch shank
• Single Plane tie rod end used on the pitman arm side to prevent unwanted drag link flop
• Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
• Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
