Wilwood TC6R Big Brake Front Brake Kit - 01-10 GM 2500/3500; 03-05 GM 1500 (Black Calipers | Slotted Rotors)

Thoroughbred Sku #: WIL140-8996
Manufacturer Sku #: 140-8996

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$2,811.20

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Wilwood TC6R Big Brake Front Brake Kit - 01-10 GM 2500/3500; 03-05 GM 1500 (Black Calipers | Slotted Rotors)
Manufacturer: Wilwood
Manufacturer Part #: 140-8996
Thoroughbred Diesel Part #: WIL140-8996
Fitment Notes: 2001-2010 GM 2500/3500 | 2003-2005 GM 1500

TC6R Big Brake Truck Front Brake Kit

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

Note: Brake lines needed 220-8998, or 220-10980

Wilwood Brake Kit Features:

  • Unmatched Braking Capacity: Designed for trucks and SUVs with larger than stock wheels.
  • Wheel Compatibility: Fits many 20” and larger wheels (verify clearance with installation instructions).
  • High Clamping Efficiency: TC6R caliper provides superior braking force.
  • Large Rotors: Includes 16” diameter directional vane rotors.
  • High Friction Brake Pads: Equipped with BP-10 compound brake pads for enhanced braking power.
  • Optimized for Heavy Loads: Suitable for vehicles with high GVW and those used for towing.
  • OE Master Cylinder Compatibility: Engineered to work seamlessly with the original master cylinder.
  • ABS System Integration: Retains full functionality of the ABS system.
  • For more information on Wilwood call us at 1-859-737-4966.

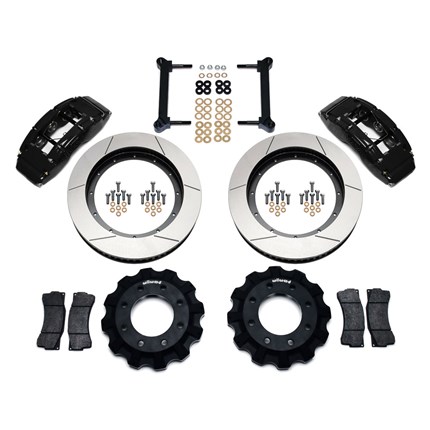

Kit Components & Specifications :

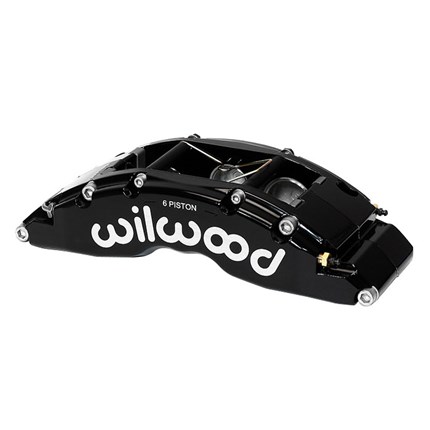

  • Calipers
    • Left Hand - Part No: 120-14320-RS
    • Right Hand - Part No: 120-14319-RS
    • Type: TC6
    • Finish Color: Black Powder Coat
    • Piston Count: 6
    • Piston 1 Bore (in): 1.88
    • Piston 2 Bore (in): 1.62
    • Piston 3 Bore (in): 1.62
    • Piston Area (In²): 6.90
    • Piston Type: Stainless
    • Mount Type: Radial
    • Brake Pad Plate: 6318
    • Brake Pad Area (In²): 13
    • Brake Pad Volume (In³): 6
    • Pad Compound: BP-10

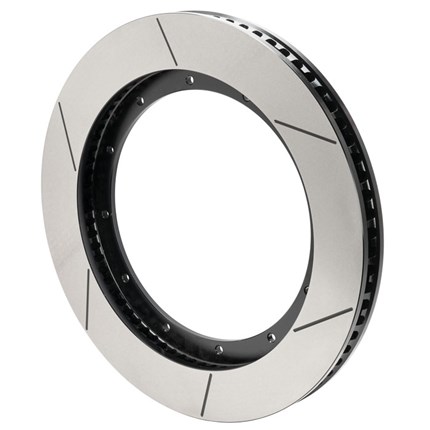

  • Rotors
    • Left Hand - Part No: 160-16994-GTB
    • Right Hand - Part No: 160-16994-GTB
    • Type: GT 72 Staggered Vane
    • Style: GT Slotted
    • Surface Finish: Black Electro Coat
    • Material: Iron
    • Outside Diameter (in): 16.00
    • Width (in): 1.38
    • Vane Count: 72 SV
    • Design Type: GT-BLK
    • Bedded: No
    • Dynamically Balanced: Yes

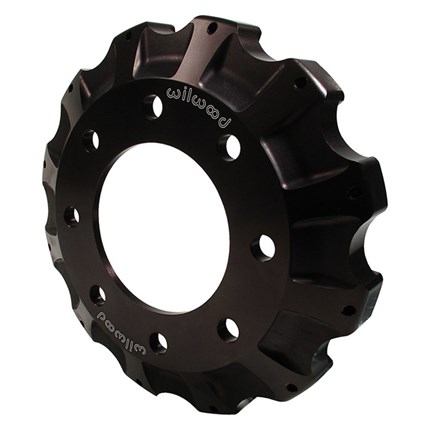

  • Rotor Hats
    • Hat - Part No: 170-8878
    • Type: Truck Hat - Standard
    • Material: Aluminum
    • Finish Color: Black E-Coat
    • Hat Offset Dimension (in): 1.550
    • Bolt Circle 1: 8 x 6.50
    • Stud Diameter - BC 1: 0.630
    • Stud Diameter - BC 2: 0.000
    • Stud Diameter - BC 3: 0.000
