Wilwood TX6R Tactical Xtreme Rear Big Brake Kit With Brake Lines - 11-19 GM 2500 (Black Calipers)

Product Name: Wilwood TX6R Tactical Xtreme Rear Big Brake Kit With Brake Lines - 11-19 GM 2500 (Black Calipers)
Manufacturer: Wilwood
Manufacturer Part #: 140-13874
Thoroughbred Diesel Part #: WIL140-13874
Fitment Notes: 2011-2019 GM 2500

TX6R Big Brake Truck Rear Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

Wilwood Brake Kit Features:

• Ultimate Braking Performance: Designed for trucks, SUVs, and armored vehicles.
• Six-Piston Calipers: Features TX6R radial mount six-piston calipers for superior clamping force.
• Massive Rotors: Includes 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors.
• High Heat Durability: Delivers consistent stopping power and extreme duty durability under sustained high heat.
• Bolt-On Kit: Ready to install with radial mount caliper brackets and all necessary hardware.
• OE Compatibility: Volume matched for compatibility with original power brake system output.
• Factory Disc Replacement: Replaces factory disc brakes and uses the OE parking brake assembly.
• Complements Front Upgrades: Ideal for complementing front big brake upgrades.
• Additional Parts Needed: Braided stainless steel flex lines may need to be purchased for some applications.
• For more information on Wilwood call us at 1-859-737-4966.

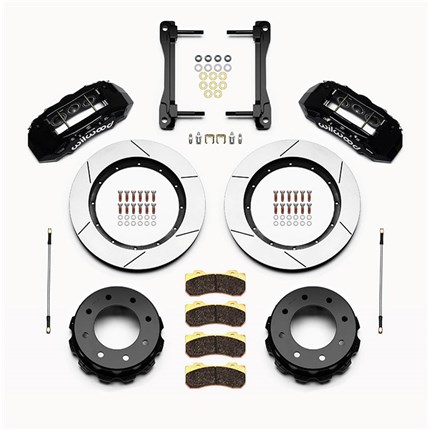

Kit Components & Specifications :

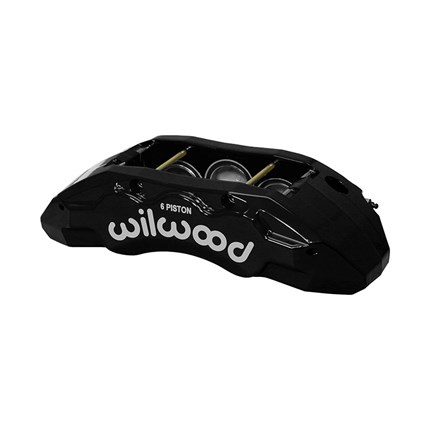

• Calipers
• Left Hand - Part No: 120-13818-BK
• Right Hand - Part No: 120-13817-BK
• Type: TX6R
• Finish Color: Black Powder Coat
• Piston Count: 6
• Piston 1 Bore (in): 1.75
• Piston 2 Bore (in): 1.62
• Piston 3 Bore (in): 1.62
• Piston Area (In²): 6.52
• Piston Type: Stainless
• Mount Type: Radial
• Brake Pad Plate: 10120
• Brake Pad Area (In²): 12.69
• Brake Pad Volume (In³): 6.81
• Pad Compound: BP-Q

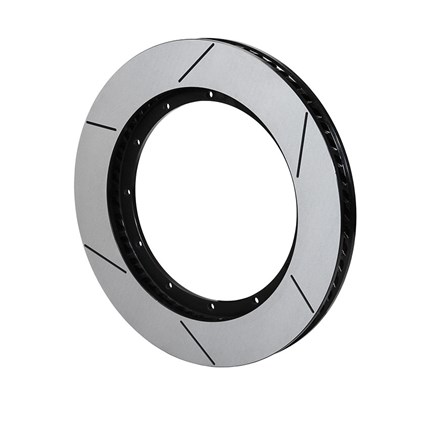

• Rotors
• Left Hand - Part No: 160-13790-GTB
• Right Hand - Part No: 160-13789-GTB
• Type: GT 60 Curved Vane
• Style: GT Slotted
• Surface Finish: Black Electro Coat
• Material: Spec-37 Iron
• Outside Diameter (in): 15.50
• Width (in): 1.38
• Vane Count: 60 CV
• Design Type: GT-BLK
• Bedded: No
• Dynamically Balanced: Yes

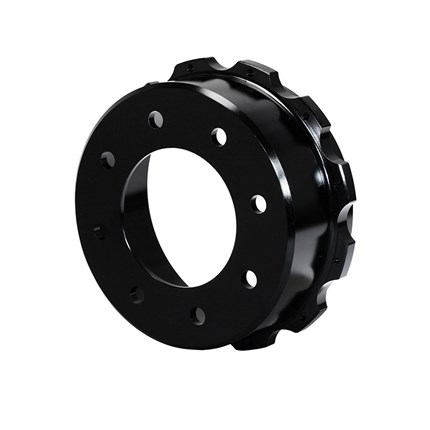

• Rotor Hats
• Hat - Part No: 170-13872
• Type: Parking Brake Hat - Truck
• Material: Iron
• Finish Color: Black E-Coat
• Hat Offset Dimension (in): 2.920
• Bolt Circle 1: 8 x 7.09
• Bolt Circle 2:
• Bolt Circle 3:
• Stud Diameter - BC 1: 0.640
• Stud Diameter - BC 2: 0.000
• Stud Diameter - BC 3: 0.000
