Zone Offroad 3.5” Adventure Series Lift Kit 2007 - 2013 Chevy/GMC 1500 Trucks

Thoroughbred Sku #: ZONC30

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

$630.90

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Reviews
Questions & Answers

Product Details

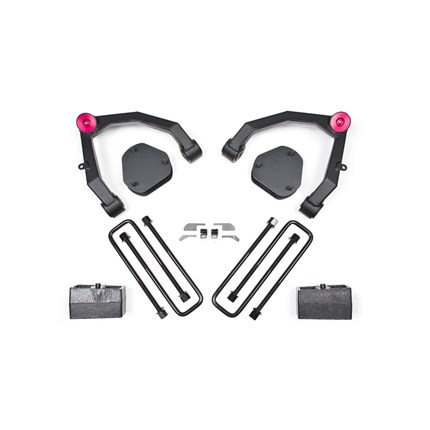

Product Name: Zone Offroad 3.5" Adventure Series Lift Kit 2007 - 2013 Chevy/GMC 1500 Trucks
Manufacturer: Zone Offroad
Manufacturer Part #: ZONC30
Thoroughbred Diesel Part #: ZONC30

This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCA's are made from fully welded, 1/8" steel plate and CNC-machined ball joint and bushing mounts. The high-quality MOOG ball joints can handle heavy-duty use, and they work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles. Strut spacers provide a full 3.5" of lift and install easily on the factory struts without the need of a strut compressor. A rear 3" block and U-bolt system nets 2" of rear lift and provides an athletic level vehicle stance.

Overview

Front Lift Height	3.5"
Front Lift Method	Upper Control Arms
Rear Lift Method	Block Kit
Lift Type	Lift Kit
Wheel Size	17 x 9
Back Spacing	5"
Max Tire Size	285 / 70
Finish	Powdercoat

Features

Fully welded, heavy duty upper control arms that dwarf the factory arms.
CNC-machined UCA bushing and ball joint cups.
OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
Improved UCA range of motion compared to stock arms
UCAs utilize replaceable ball joints
