Zone Offroad 4” Radius Arm Lift Kit - Gas 4" Radius Arm Systems for 2019 - 2023 RAM 2500 4WD

Thoroughbred Sku #: ZOND79

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

$1,343.65

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Reviews
Questions & Answers

Product Details

Product Name: Zone Offroad 4" Radius Arm Lift Kit - Gas 4" Radius Arm Systems for 2019 - 2023 RAM 2500 4WD
Manufacturer: Zone Offroad
Manufacturer Part #: ZOND79
Thoroughbred Diesel Part #: ZOND79

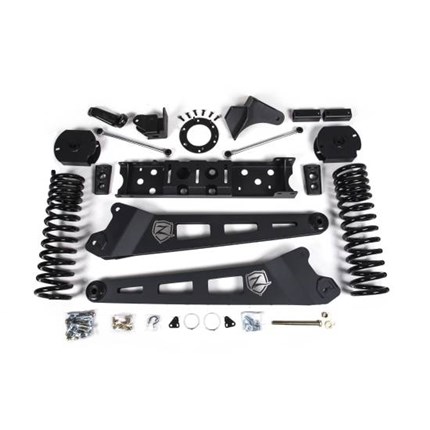

Take your RAM 2500 to new heights with this 4" radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Overview

Front Lift Height	4"
Rear Lift Height	2.5"
Material	Steel
Front Lift Method	Coil Springs
Rear Lift Method	Coil Spacer
Lift Type	Suspension
Wheel Size	20 x 9
Back Spacing	5.5"
Max Tire Size	37 x 12.5
Wheel Size 2	20 x 9
Back Spacing 2	4.5"
Max Tire Size 2	35 x 12.5
Is Adjustable	No
Finish	Powdercoat
Cutting Required	No
Welding Required	No

Features

Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
High strength progressive rate front coil springs for a great ride on any terrain
F/R HD track bar relocation brackets to correctly position both axles under the truck
Forged drop pitman arm to corect steering angles
HD transmission crossmember and t-case indexing ring to correct front driveline angles
Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
Allows clearance for up to 37" tires
