Zone Offroad 5” Suspension Lift Kit 2016 - 2021 Toyota Tundra 4WD

Thoroughbred Sku #: ZONT5

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

$1,256.80

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Reviews
Questions & Answers

Product Details

Product Name: Zone Offroad 5" Suspension Lift Kit 2016 - 2021 Toyota Tundra 4WD
Manufacturer: Zone Offroad
Manufacturer Part #: ZONT5
Thoroughbred Diesel Part #: ZONT5

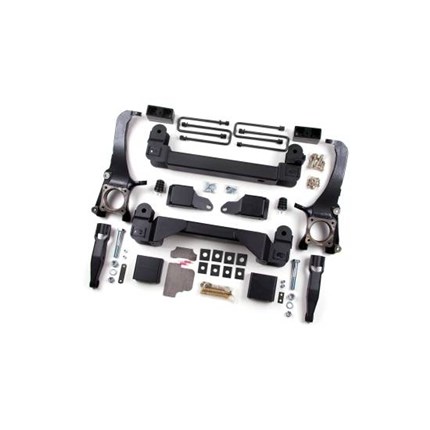

Take your Tundra to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to lower strut extensions and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Overview

Front Lift Height	5"
Rear Lift Height	3"
Front Lift Method	Knuckle & Drop Cross-Member
Rear Lift Method	Fabricated Blocks
Lift Type	Lift Kit
Wheel Size	18 x 9
Back Spacing	5.5"
Max Tire Size	35 x 12.5
Wheel Size 2	20 x 9
Back Spacing 2	6.25"
Max Tire Size 2	35 x 12.5
Wheel Size 3	22 x 9
Back Spacing 3	6.25"
Max Tire Size 3	35 x 12.5
Is Adjustable	No
Finish	Powdercoat
Cutting Required	No
FMVSS Certification	N/A (See notes)
Accommodates Factory Wheels	No
Welding Required	No

Features

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Lower strut extensions to provide lift and install easily
Weld-in chassis plates add strength and rigidity
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line, and bump stop relocation brackets to correct operating angles
