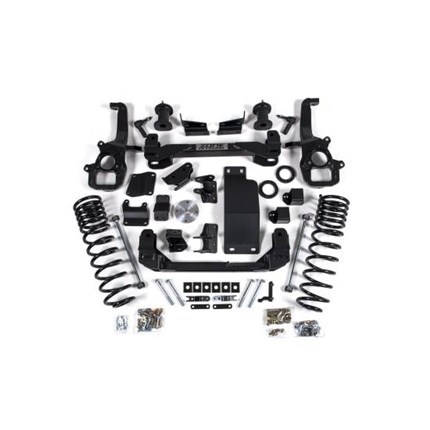

Zone Offroad Ram 1500 Rebel/Off Road 4wd 4” Lift System 2019 - 2023 Ram 1500 Rebel/OffRoad 4wd 4" Front 5" Rear Suspension Lift System

Thoroughbred Sku #: ZOND146

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

$1,528.65

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Reviews
Questions & Answers

Product Details

Product Name: Zone Offroad Ram 1500 Rebel/Off Road 4wd 4" Lift System 2019 - 2023 Ram 1500 Rebel/OffRoad 4wd 4" Front 5" Rear Suspension Lift System
Manufacturer: Zone Offroad
Manufacturer Part #: ZOND146
Thoroughbred Diesel Part #: ZOND146

Take your 2019+ RAM 1500 Rebel or Offroad edition truck to new heights with the new 4" IFS Lift System from Zone Offroad. Specially designed for the new RAM trucks, these lifts improve stance with clearance for larger tires while correcting suspension geometry. These kits are built right here in the USA to the highest quality standards to all for improved offroad performance while maintaining on-road handling and comfort. As with all Zone Offroad lift kits, these new kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes Zone Offroadâ€™s Limited Lifetime Warranty, ESC system compatibility and a 5-year 100,000-mile drivetrain warranty.

Overview

Front Lift Height	4"
Rear Lift Height	5"
Material	Steel
Front Lift Method	Strut Spacers
Rear Lift Method	Coil Springs
Lift Type	Suspension
Wheel Size	20 x 9
Back Spacing	5-5.75"
Max Tire Size	35 x 12.5
Wheel Size 2	18 x 9
Back Spacing 2	5"-5.25"
Max Tire Size 2	35 x 12.5
Wheel Size 3	17 x 9
Back Spacing 3	5"
Max Tire Size 3	35 x 12.5
Is Adjustable	No
Finish	Powdercoat
Cutting Required	Yes
Welding Required	No

Features

Maintains on-road handling while improving offroad performance
Heady duty crossmembers and skid plates for protection
New steering knuckles add strength and allow ESC system compatibility
Top mounted front strut spacer retains factory ride quality
Available with Nitro Series or FOX 2.0 Adventure Series rear shocks
Allows fitment of up to 35" tires
